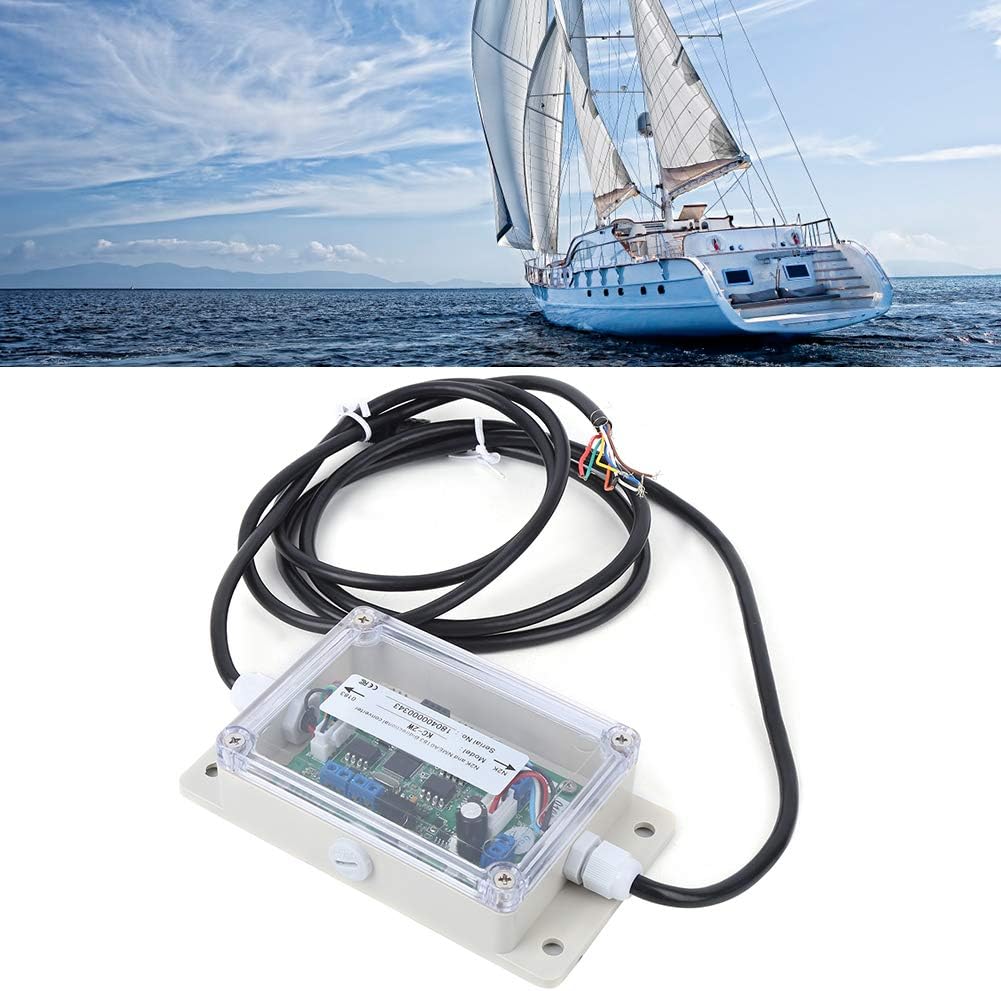

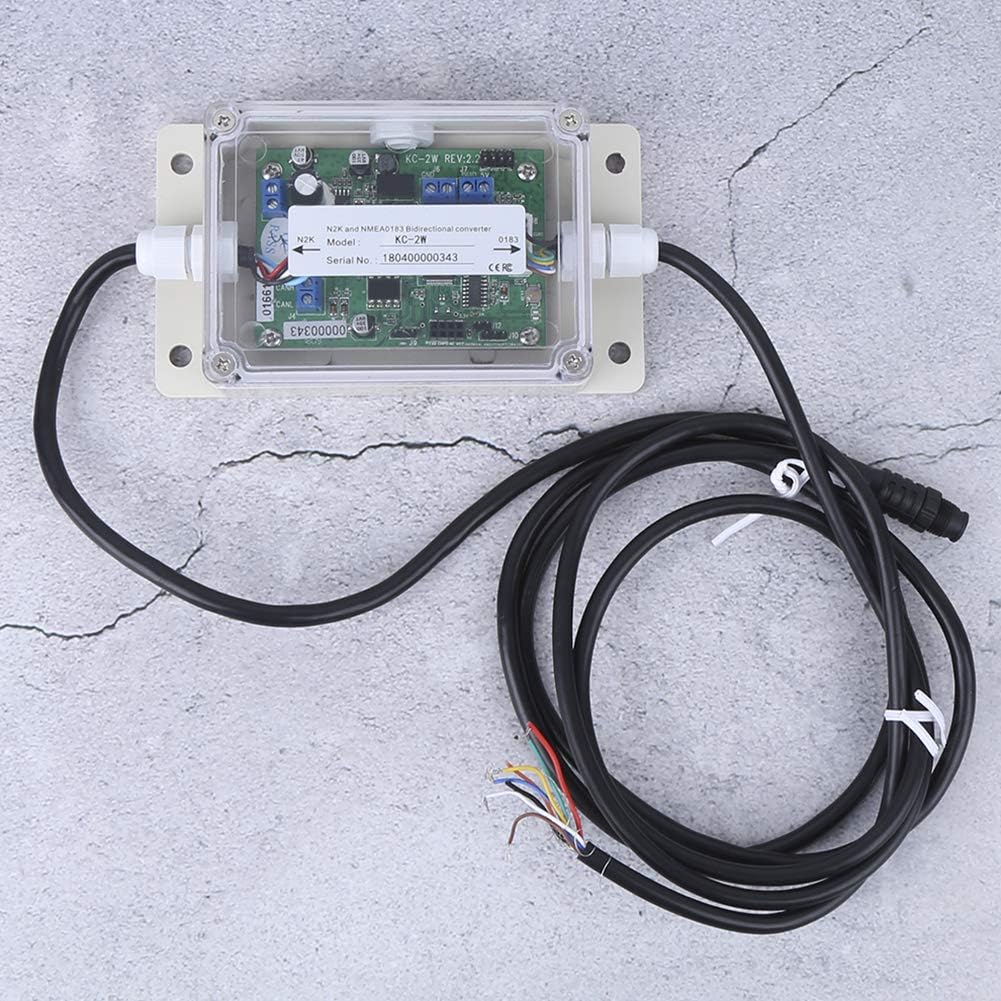

Bi‑Directional Converter Bi‑Direction Converter Module NMEA2000 and NMEA0183 KC‑2W IPX67 DC 9‑30V ABS
Product details
| Management number | 228148655 | Release Date | 2026/05/31 | List Price | US$56.02 | Model Number | 228148655 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Conditon: Brand NewItem Type: Bi‑Directional ConverterMaterial: ABSColor: As Pictures ShownVoltage: 9-30V DCCurrent Consumption: 50mA at 12V DC : Overvoltage, power supply transient and accidental reverse polarity protectionSupported PGNs: 126992 , 127237, 127245, 127488, 127250 , 127251 , 127258 , 127489, 128259 , 128267 , 128275 , 129025 , 129026 , 129029 , 129033 , 129038, 129039, 129040, 129044 , 129283 , 129284 , 129291 , 129539 , 129540 ,129793 , 129794 , 129798 , 129809 , 129810, 130306 , 130310 , 130311 , 130312 , 130578Electrical: Optical isolation on the N2K Can busConnector: maleCable Length: Approx. 1.2m/1.3ydFactory Default Setting: Enable all supported aboveSupported : , , , BWW, , , DTM, GGA, GLL, GSA, GSV, , HDM, , MDA, , , , , ROT, RSA, , VDO, , , , VTG, , XTE, ZDAElectric:Output: RS232Input: RS232 photoelectric isolationBaud Rate:Input: Automatic detection (maximum 115200)Output: Configurable (factory default is 38400)Factory Default Setting: Enable all the supported NMEA0183Input : TTLOutput:N2K : 127489NMEA0183 : Operating Temperature: -20°C to +55°CHumidity: 93%±3% at 40°CWaterproof Level: IPX67 Package List:1 x Bi‑Directional Converter4 x Screw1 x Connector1 x Instruction
- Function ---- Bi‑Directional Converter support fuel sensor, auto detect NMEA0183 baudrate and supported sentences. Take power from the N2K network, no external power supply is needed.
- Professional manufacturing ---- Establish strict quality control standards, testing has been carried out before leaving the factory. Professional manufacturing, high reliability.
- Features ---- Firmware upgrade and NMEA0183 output baudrate configuration by supplied PC software.
- Plug and play ---- Bi‑Directional Converter is easy to install, convenient to use, overvoltage , fast and efficient.Converts NMEA 0183 sentences to N2K PGNs, converts N2K PGNs to NMEA 0183 sentences.
- Specification ---- Material: ABS, Voltage: 9-30V DC, Current Consumption: 50mA at 12V DC, : Overvoltage, power supply transient and accidental reverse polarity , Electrical: Optical isolation on the N2K Can bus, Connector: male, Cable Length: Approx. 1.2m/1.3yd, Factory Default Setting: Enable all supported
| ASIN | B09KX9HJ2Q |
|---|---|
| Brand | Qiilu |
| Item Weight | 15.7 ounces |
| Manufacturer | Qiilu |
| Package Dimensions | 8.46 x 5.51 x 2.56 inches |
| Manufacturer Part Number | QiiluA1e844 |
